Product Introduction

A double stages slurry pump with head of 70m

Capacity

Flow≤203m3/h

Product Improvement

Double impellers serial design without increasing the diameter of the impeller makes head up to 70 meters

Advantages

Break through the head limit (60 meters) of rubber pump, up to 70 meters

The rubber slurry pump with resistance to wear and corrosion and high head

Packing sealing, simple and reliable, no leakage

It is easy to replace wet parts

Product Features

Baoshan Double Stages Slurry Pump as the feeding pump and tailing pump for press filter break through the 60m head limit.

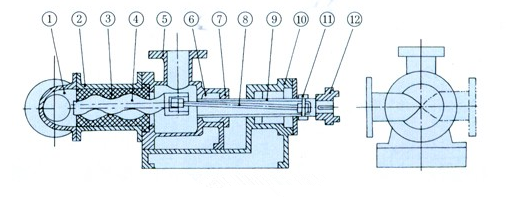

Product Structure

Technical Parameters

Items Model	Rotation Speed (r/min)	Flow (m3/h)	Head (m)	Max shaft power (KW)	Referenced motor (KW)
					Model	Power
XPA(2)-50	1480	27.5	76.0	22.3	Y225S-4	37
	1480	41.4	72.2	22.3	Y225S-4	37
	1480	55.2	66.1	22.3	Y225S-4	37
	1480	69.0	56.0	22.3	Y225S-4	37
	1480	80.0	43.5	22.3	Y225S-4	37
XPA(2)-65	1480	40.0	76.0	32	Y225M-4	45
	1480	60.0	72.2	32	Y225M-4	45
	1480	80.0	66.1	32	Y225M-4	45
	1480	100.0	56.0	32	Y225M-4	45
	1480	115.0	43.5	32	Y225M-4	45
XPA(2)-75	1480	56.0	73.3	49	Y250M-4	55
	1480	85.0	69.0	49	Y250M-4	55
	1480	113	62.5	49	Y250M-4	55
	1480	150	51.2	49	Y250M-4	55
	1480	169	44.0	49	Y250M-4	55
XPA(2)-100	1480	70.0	73.5	62.5	Y280S-4	75
	1480	105	71.6	62.5	Y280S-4	75
	1480	140	68.6	62.5	Y280S-4	75
	1480	186	61.9	62.5	Y280S-4	75
	1480	245	48.5	62.5	Y280S-4	75
XPA(2)-100-Ⅰ	1480	79.7	80.0	78.2	Y280M-4	90
	1480	119	78.0	78.2	Y280M-4	90
	1480	159	74.8	78.2	Y280M-4	90
	1480	211	67.5	78.2	Y280M-4	90
	1480	279	52.9	78.2	Y280M-4	90
XPA(2)-100-Ⅱ	1480	58.0	91.8	64.7	Y280M-4	90
	1480	87.0	89.1	64.7	Y280M-4	90
	1480	116	85.7	64.7	Y280M-4	90
	1480	154	77.3	64.7	Y280M-4	90
	1480	203	60.6	64.7	Y280M-4	90
