Product Introduction
A submerged slurry pump with high wear resistance
Capacity
Flow≤105m3/h
Product Improvement
Impeller is moulded by wear-resistant rubber developed by Baoshan; wear index reaches 128%
Resistance to wear and corrosion
Small vibration, low noise
Firm, durable and long service life
Excellent sealing, no leakage

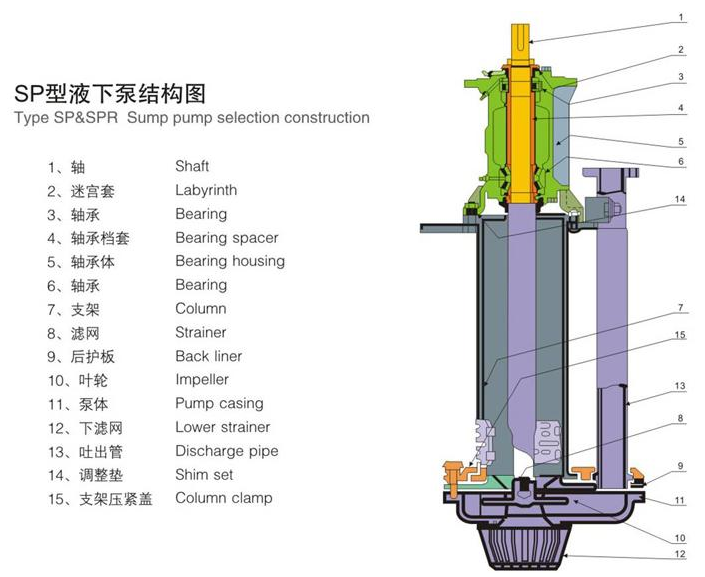

The main components of submerged slurry pump includes impeller, shaft, protective board, pump shell, packing box etc..
Baoshan submerged slurry pump is used in mining, environmental protection, paper industry, refineries, thermal power plant, printing and dyeing, sucking strong liquor, thickened oil, foul liquid, slurry, mortar and floating sludge from city drainage ditch
Technical Parameters
|
Specification |
Flow(m3/h) |
Head(m) |
Rotation Speed(r/min) |
Motor Maximum Power(Kw) |
Maximum Efficiency(%) |
Impeller Diameter(mm) |
Outlet Diameter(mm) |
|
40PV-SPR/XH |
17.239-39.6 |
4-26.0 |
1000-2200 |
15 |
40 |
188 |
40 |
|
60QV-SPR/XH |
25.5-105 |
5.5-30.5 |
700-1500 |
30 |
51 |
280 |
65 |
|
100RV-SPR/XH |
64.8-285 |
7.5-36 |
600-1200 |
75 |
62 |
370 |
100 |
