Introduction
A new efficient thickener independently developed by Baoshan
Capacity
5-1400t/d
Product improvement
This thickener After improvement, the capacity becomes larger, overflow with low turbidity and discharge with high concentration
Out overflow weir instead of inner overflow weir increases the sedimentation area and not easy to block
Oblique feeding instead of horizontal feeding solves the blockage problem
A tranquil flow device reduces material flow rate, so that the overflow becomes more uniform with lower turbidity.
Work Principle

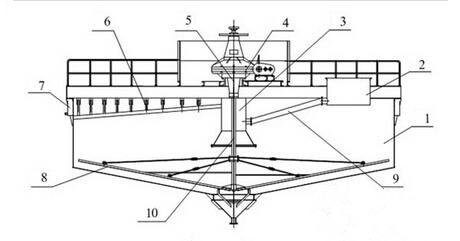

The vertical axis rotates driven by motor, and pulp by feeding device flows into the tank center feed mixing barrel.Solid material in the bottom of the tank by the scraper moves out of center; clarified overflow through the tranquil flow device flows out from the ring external overflow weir.
It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc.
|
Model |
Tank Diameter (mm) |
Tank Depth (mm) |
Subsidence Area (m2) |
Capacity |
Motor Model |
Motor Power |
Steel Tank Weight (kg) |
Weight |
|
NZSG-2.5 |
2500 |
1850 |
4.9 |
5 ~22.4 |
Y90L-6 |
1.1 |
1000 |
2225 |
|
NZSG-3A |
3000 |
1800 |
7 |
5 ~23.3 |
Y100L-6 |
1.5 |
1664 |
3168 |
|
NZSG-3 |
3600 |
1800 |
10.2 |
5 ~28.5 |
Y100L-6 |
1.5 |
2097 |
3680 |
|
NZSG-5 |
5000 |
2956 |
16 |
16 ~90 |
Y90L-4 |
1.5 |
5160 |
8031 |
|
NZSG-6 |
6000 |
2956 |
28.3 |
98 |
Y90L-4 |
1.5 |
5769 |
9200 |
|
NZSG-7 |
7000 |
3000 |
38.5 |
140 |
Y112M-6 |
2.2 |
8800 |
13862 |
|
NZSG-8 |
8000 |
3318 |
50.2 |
185 |
Y132S-6 |
3 |
12966 |
19158 |
|
NZSG-9 |
9000 |
3376 |
63 |
210 |
Y132S-6 |
3 |
15418 |
21733 |
|
NZSG-12 |
12000 |
3600 |
113 |
370 |
Y132S-6 |
3 |
25589 |
34823 |
|
NZSG-15 |
15000 |
3600 |
176 |
580 |
Y132S-4 |
5.5 |
35800 |
54315 |
|
NZSG-18 |
18000 |
4400 |
255 |
960 |
YCT200-4B |
7.5 |
52485 |
73588 |
|
NZSG-20 |
20000 |
4400 |
315 |
1400 |
YCT200-4B |
7.5 |
59365 |
76312 |
