Product Introduction
A independently developed deep cone thickener, the underflow concentration up to 70%
Capacity
60～880m3/h
Product Improvement
Large angle cone, high underflow concentration
Advantages
Small area taken, large capacity
Slender body, flocculants are added in the process of concentrate; accelerate the particle settlement and dewatering process.
Reasonable structure, low energy consumption, high efficiency and low operation and maintenance cost

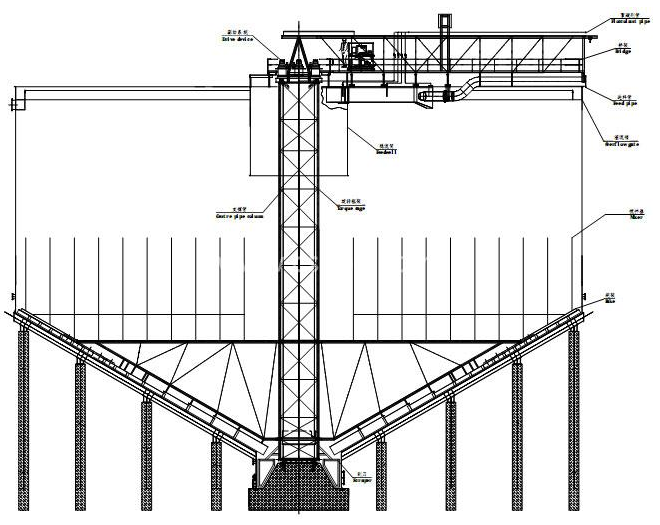

Deep cone thickeneralso called paste thickener is higher than other thickeners which consists of deep cone, feeding device, stirring device, control box, reagents adding device, automatic control system, etc.
Efficient deep cone thickeneris mainly applied in thickening of minerals or other fine materials.
|
Motor |
Tank Diameter(mm) |
Tank depth (mm) |
Sedimentation Area(m2) |
Capacity (m3/h) |
|
GSNG-3 |
3000 |
4404 |
21 |
60-70 |
|
GSNG-6 |
6000 |
8810 |
85 |
210-260 |
|
GSNG-9 |
9000 |
13500 |
310 |
570-700 |
|
GSNG-12 |
12000 |
17500 |
510 |
800-1200 |
|
GSNG-15 |
15000 |
19000 |
1200 |
1000-1500 |
|
GSNG-18 |
18000 |
22000 |
2000 |
1400-2100 |
|
GSNG-20 |
20000 |
22800 |
2700 |
2100-2600 |
