Product Introduction

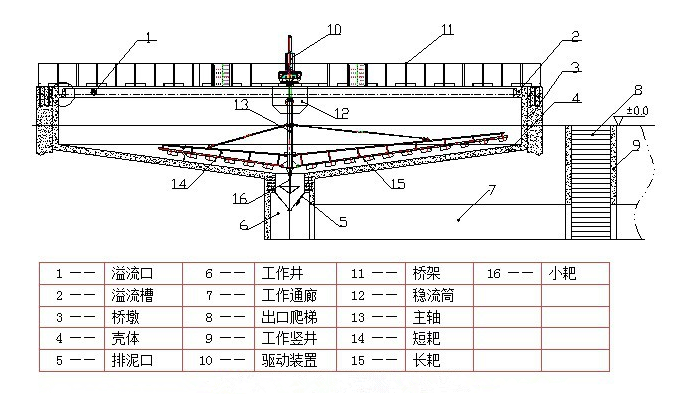

A thickener with center hydraulic driving and hydraulic automatic rake lifting
Sedimentation Area
28~1590 m2
Simple and convenient installation & maintenance
The simple internal structure is convenient for the layout of hydraulic and electric control system.
Control the speed of rake by regulating oil volume of oil pump, so as to achieve the best state.
Automatic rake lifting and dropping
Mainly used for clarification and concentration of coal slurry or pulp
Also used for dewatering of solid-liquid separation in chemical industry, metallurgy industry, etc.
Technical Parameters Table of Hydraulic Motor Driving Center Thickener
|
Model |
Thickening Tank Diameter (m) |
Thickening Tank Center Depth (m) |
Subsidence Area (m2) |
Time of Harrow Rack Rotation (min) |
Height of Lifting Harrow (mm) |
Capacity |
Drive Power |
|
NZY-6 |
6 |
3 ~3.2 |
28 |
2.5 ~5 |
350 |
50~100 |
3 |
|
NZY-9 |
9 |
3.5~3.8 |
63.6 |
3~5 |
350 |
120~175 |
3 |
|
NZY-12 |
12 |
3.5~3.8 |
113 |
4~7 |
350 |
200~300 |
4 |
|
NZY-15 |
15 |
4 ~4.5 |
176 |
5~10 |
450 |
350~400 |
5.5 |
|
NZY-18 |
18 |
4 ~4.5 |
254 |
8~12 |
450 |
600~800 |
5.5 |
|
NZY-20 |
20 |
4 ~4.5 |
314 |
8~12 |
450 |
800~1000 |
7.5 |
|
NZY-24 |
24 |
4.5~5.5 |
450 |
9~12 |
450 |
1000~1300 |
7.5 |
|
NZY-30 |
30 |
4.5~5.5 |
706 |
10 ~14 |
450 |
1500~1800 |
11 |
|
NZY-38 |
38 |
6.5 ~8 |
1134 |
15 ~22 |
600 |
1800~2200 |
15 |
|
NZY-40 |
40 |
6.5 ~8 |
1256 |
15 ~22 |
600 |
2200~2400 |
15 |
|
NZY-45 |
45 |
6.5 ~8 |
1590 |
15 ~22 |
600 |
2400~2800 |
15 |
|
NZY-53 |
53 |
6.5 ~8 |
2206 |
15 ~22 |
600 |
3000~3500 |
15 |
|
NZY-60 |
60 |
7 ~8.5 |
2827 |
16~50 |
600 |
3500~5000 |
18.5 |
|
NZY-75 |
75 |
8~10 |
4418 |
20 ~80 |
800 |
7500~10000 |
22 |
|
NZY-100 |
100 |
8~10 |
7853 |
35~80 |
800 |
10000~15000 |
30 |
