Introduction
Peripheral transmission thickener has two kinds, peripheral roller transmission and peripheral gear transmission
Capacity
87～3000t/d
Product Improvement
Single row cross column rotary support or single row four point contact ball rotary support, collector device with good insulation, exposed rotary parts with light shield
Unique bridge design, excellent rigid strength and strong overload capacity
Peripheral roller transmission, low energy consumption, stable and reliable operation
Simple operation, convenient maintenance and remote control

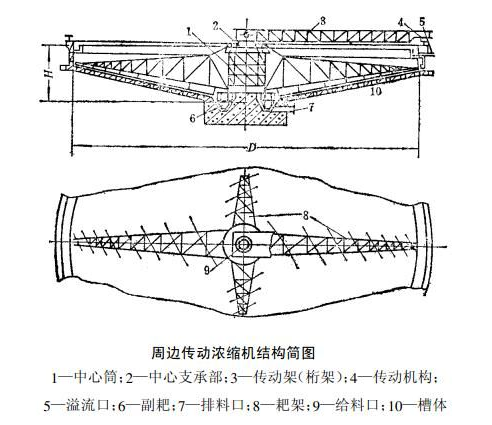

This thickener consists of round thickener and harrow scraping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.
The machine is suitable for dealing with large capacity and light density products. Mainly used for condensing concentrate and dewatering the tailings. It can be also used for condensing and cleaning the pulp with solid particles in coal, chemical, building materials and sewage treatment system.
Peripheral Roller Transmission Thickener
|
Model |
Thickening Tank Diameter (mm) |
Thickening Tank Center Depth (mm) |
Capacity |
Subsidence Area (m2) |
Motor Model |
Motor Power |
Weight |
|
NG-15 |
15000 |
3612 |
88 〜390 |
177 |
Y132M2-6 |
5.5 |
11702 |
|
NG-18 |
18000 |
3500 |
127〜560 |
255 |
Y132M2-6 |
5.5 |
9718 |
|
NG-24 |
24000 |
3400 |
226〜1000 |
452 |
Y160M-6 |
7.5 |
24000 |
|
NG-30 |
30000 |
3940 |
353〜1570 |
707 |
Y160M-6 |
7.5 |
31000 |
|
NG-45 |
45000 |
5060 |
790〜2400 |
1590 |
Y160L-6 |
11 |
50640 |
|
NG-53 |
53000 |
5070 |
1000〜3400 |
2202 |
Y160L-6 |
11 |
60910 |
