Introduction
An agitation equipment used in reagents preparation
Effective Volume
0.094～ 4.4m3
Product improvement
The cylinder is lined with Baoshan rubber to resist the corrosion of reagents
Excellent wear-resistance, long service life
Strong agitation capability

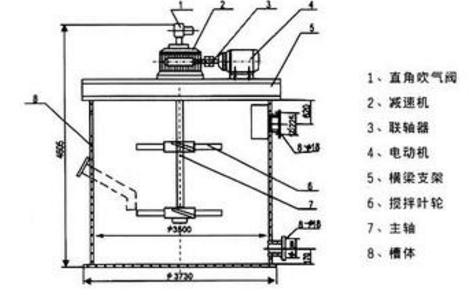

Agitation tank for chemical reagent for chemical reagent adopts barrel shaped radiation circular spiral impeller for mixing operation by mechanical stirring method. The motor drives V- belt transmission device which drives the impeller. Reagents mix evenly under the rotation of impeller preparing for next step that mix the ore slurry and reagents.
Agitation tank for chemical reagent is used for reagents preparation before floatation.
（Better using according to the own situation and guidance of technician）
|
Model |
Effective Volume (m3) |
Rotating Speed of Impeller (r/min) |
Diameter of Impeller (mm) |
Motor Model |
Motor Power |
Weight (kg) |
|
BJW-500X600 |
0.094 |
493 |
200 |
Y80L-4 |
0.55 |
120 |
|
BJW-750X750 |
0.25 |
530 |
240 |
Y100L-6 |
1.5 |
230 |
|
BJW-750X1000 |
0.35 |
530 |
240 |
Y100L-6 |
1.5 |
270 |
|
BJW-1000X1000 |
0.58 |
530 |
240 |
Y100L-6 |
1.5 |
420 |
|
BJW-1250X1250 |
1.15 |
492 |
310 |
Y100L1-4 |
2.2 |
490 |
|
BJW-1500X1500 |
2.2 |
320 |
400 |
Y132S-6 |
3 |
1310 |
|
BJW-2000X2000 |
5.46 |
230 |
550 |
Y132M2-6 |
5.5 |
1720 |
|
BJW-3000X3000 |
14.8 |
210 |
700 |
Y225S-8 |
18.5 |
4613 |
